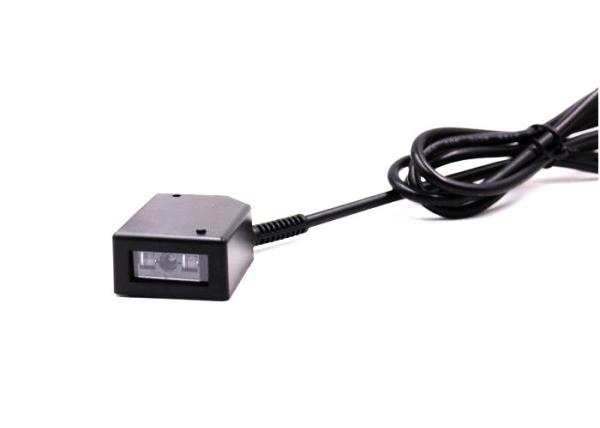

Small Fixed Mount Barcode Reader , Supermarket 1d Mountable Barcode Scanner

  • 1
  • 2

Brand Name : Dingyu/ DY SCAN

Model Number : DF3100

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : T/T, Paypal, Alibaba

Supply Ability : 10000pcs/month

Delivery Time : 3-7 days

Packaging Details : 188mm L * 95mm W * 40mm H

Weight : 80g

Scan Type : Linear CCD

Resolution : ≥3mil/0.076mm(PCS90%,Code 39)

Ambient Light : Dark environment, indoor natural light

Transport vibration Test : 10H@125RPM

Storage temperature : -40℃ to 70℃

Contact Now

Small Fixed Mount Function Of 1d Barcode Scanner Barcode Reader For Suppermarket
Product Description

It is continuous scan/auto-sense(for choice),very comfortable operating.

Support 0--10,000 LUX ambient light resistance.

Mini size and lightweight easy to be integrated into various solutions such as kiosks, flow line,medical equipment,ticketing.

It can be customized according to customer demand.1D CCD mini fixed mount barcode scanner,barcode reader module for suppermarket.

Features

1. Support reading barcodes from screen.

2. Can be customized according to customer demand.

3. Scanner reads 1D barcodes printed on labels or displayed on device screens.

4. No driver, plug and play.

5. Super scanning and decoding ability, can read incomplete and fuzzy codes..

6 .32 bit processor, More fast than 8 bit and 16 bit barcode scanners.

Applicable occasions

Factory assembly line, logistics store, supermarket,

bookstore recount , in the pharmaceutical industry, etc

Parameter

Physical Parameter
Weight ≈80g(USB)
Dimension (L)49.2mm * (W)37.5mm * (H)20.0mm
Interface Type USB ,DB9
Communication Mode USB(USB-KBW,USB-COM),RS232
Power Supply DC 5V@80mA(work)
Performance
Scan Type Linear CCD
Light Source Visible red light,625±10nm
CPU 32-bit
Resolution 2500
Resolution ≥3mil/0.076mm(PCS90%,Code 39)
Decoding speed 300times/s
Depth of field 30mm-700mm
Scan Mode Manual ,Continuous, Auto sense, flashing
Scan Angle Roll±30°,Pitch±60°,Skew±60°(PCS90%,Code 39,10mil/0.25mm)
Print Contrast Signal ≥20%
Ambient Light Dark environment, indoor natural light
Symbologies UPC-A,UPC-E,EAN-8,EAN-13,ISSN,ISBN,Code 128, GS1-128,ISBT 128, Code 39,Code 93,Code 11, Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Standard 2 of 5(IATA),Codabar(NW-7),Plessey,MSI Plessey,RSS,China Post,etc.
Environmental
Operating temperature -20℃ to 50℃
Storage temperature -40℃ to 70℃
Humidity 5% to 95%(non-condensing)
Drop Height 1.5 meters
Transport vibration Test 10H@125RPM
Depth of field
3MIL 80-120mm (PCS90%,Code 39)
13MIL 30-320mm (PCS90%,EAN-13)
20MIL 30-450mm (PCS90%,Code 39)
40MIL 130-700mm (PCS90%,Code 39)
Accessories List
Cable(non-removable) USB Cable, used to connect the DF3100 to a host device.
RS232 Cable, used to connect the DF3100 to a host device, with USB power feeder.
Power Adaptor Output: DC5V 1A,Input: AC100~240V 50~60Hz(serial port optional).


Packing & Delivery

Package Size :188mm L * 95mm W * 40mm H
Size:(L)49.2mm * (W)37.5mm * (H)20.0mm
Weight:≈80g(without cable)

FAQ

1. What's the shipping way ?

A: There are DHL,Fedex,TNT, UPS.We also can ship the goods by your shipping account or other express agent you provided.

2. What's the payment way ?

A: We accept PayPal ,T /T,LC , Western Union , MoneyGram.

3. How about your product warranty ?

A: Our officially promised warranty time is 1 years after delivery.

4. Is OEM or ODM available?

Yes.We are the factory directly.We can make it as your requirement.

With well packed carton by foam and plastic film to advoid goods damage.

5. where I can get the support ?

A: We support you technically 24h
