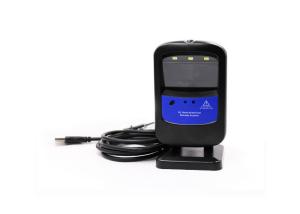

Embedded kiosk vending machine Desktop Barcode Reader 2D Barcode Scanner DP8405

Name: Embedded kiosk vending machine Desktop Barcode Reader 2D Barcode Scanner DP8405
Brand: Dingyu/ DY SCAN
Price: 1 USD

China Embedded kiosk vending machine Desktop Barcode Reader 2D Barcode Scanner DP8405 factory

Brand Name : Dingyu/ DY SCAN

Model Number : DP8405

Certification : CE, ROHS, FCC, IEC, FDA

Place of Origin : China

MOQ : 1

Price : Negotiate

Payment Terms : T/T, Paypal, Alibaba

Supply Ability : 10000pcs/month

Delivery Time : 3-7 days

Weight : 18g（without cable）

Depth of field : 0mm-210mm

Humidity : 5% to 95%（non-condensing）

Resolution : 640*480

Scan mode : Auto sense

Field of view : 80°（H)x60°（V)

Decoding speed : 50CM/S

Print Contrast Signal : 25%

Contact Now

Embedded kiosk vending machine Desktop Barcode Reader 2D Barcode Scanner DP8405

Features

☆ Mini size, widely used in wireless machine, self-service terminal.

☆ Read all mainstream 1D 2D barcodes in the market easily.

☆ High brightness, dark environment scanning, low power consumption.

☆ Interface: USB, TTL.

☆ Support multiple systems and languages, secondary development.

Parameter

Scan Type	CMOS
Light Source	5600K LEDs( Lighting)
CPU	32-bit
Field of view	80°(H)x60°(V)
Resolution	640*480
Resolution	≥5mil/0.127mm(PCS90%,Code 39)
Decoding speed	50CM/S
Depth of field	0mm-210mm
Scan Mode	Auto Sense
Scan angle	Roll±360°, Pitch±60°, Skew±32°(PCS90%, Code 39, 10mil/0.25mm)
Print Contrast Signal	≥25%
Ambient Light	Dark environment, indoor natural light
Symbologies	1D:Code 39, Full ASCII Code 39, Code 128, Code 93,Code 11, Interleave 2 of 5, NEC 2of 5, Straight 2 of 5 Industrial, Straight 2 of 5 IATA,GS1-128,Telepen,UPC-A,UPC-E0,EAN/JAN-13, EAN/JAN-8,MSI,GS1 DataBar,Trioptic code,Codablock A F,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc.

Weight	≈18g
Dimension	625823cm
Interface Type	FFC 8PIN Pitch 1.25
Communication Mode	USB,TTL
Power Supply	DC 5V@280MA(work)

Operating temperature	-20℃ to 60℃
Storage temperature	-30℃ to 70℃
Humidity	5% to 95%(non-condensing)
Drop Height	1.2m
Temp. Test	30 minutes for high Temp., 30 minutes for low Temp.,
High Temp.	60℃
Low Temp.	-20℃
Transport vibration Test	10H@125RPM

Embedded kiosk vending machine Desktop Barcode Reader 2D Barcode Scanner DP8405

Packing & Delivery

Package Size :150*230*95

Size: L70mm * W105mm * H146mm

Weight:≈350g(without cable)

Our Services

1. Your inquiry related to our products or price will be replied in 24 hours.

2. Experienced staff to answer all your inquiries in English.

3. Protection of your sales area, ideas of design and all your private information.

4. Engineers can help you to solve any technical problems.

5. 1 year warranty.
