USB RS232 1D 2D Barcode Scanner 32 Bit CMOS Kiosk Barcode Scanner

  • 1
  • 2
  • 3

Brand Name : DY SCAN

Place of Origin : Guangdong, China

Packaging Details : USB RS232 TTL CMOS PDF 417 QR mini embedded 1d 2d bar code module barcode scanner

Supply Ability : 100000 Piece/Pieces per Month

Price : $20.00 - $35.00/pieces

Type : 1D 2D Barcode Scanner

Scan Element Type : CMOS

Colour Depth : 32 Bit

Interface Type : usb, TTL RS232

Max Paper Size : A4 Size

Optical Resolution : 640*480

Scan Speed : 65CM/S

Scanning range : Roll±360°, Pitch±60°, Skew±55°

Scan mode : Auto sense, continuous

Interface : USB, TTL

Depth of field : 10-150mm

Drop Height : 1.2M

Print Contrast Signal : 20%

Contact Now

1D 2D Barcode Scanner USB RS232 Kiosk POS Reader Barcode Module Scanner Engine

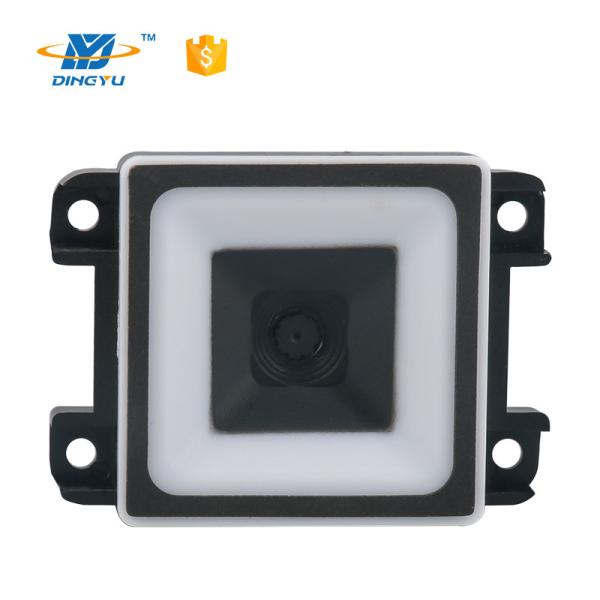

DP7628 is a 2D mini high speed desktop scanner with advanced CMOS image recognition technology.
It can easily read paper, goods, screens and other media 1D 2D barcodes.
Widely used in kiosk, turnstiles, vending machines, ticket checking machines.

> Mini size, wide-angle design, suitable for all kinds of mobile phone code scanning.
> Good reading performance with soft light fill light.
> Support online upgrade, customized development and secondary development.

Advantage

1. Support multi-language output directly, such as Russian, Japanese,Traditional Chinese, Simplified Chinese, Korean, Thai, etc.
2. Support multi-country text output in Lunix, Ubuntu system.
3. Support long-bright continuous mode, adjust brightness automatically according to distance.
4. Support inserting characters at any position and character replacement.
5. Support more than 50 barcode types, uncommon barcodes, multiple country postal codes.
6. Support HID-POS protocol, high-speed barcode information transmission.
7. Support customized functions, like OCR.
8. Support multiple setting code combination settings.

Product Parameters

Scan Type

CMOS

Image sensor

640*480

Resolution

≥4mil/0.1mm(PCS90%,CODE 39)

Decoding speed

65cm/s

View

Horizontal 60°, vertical 50°, diagonal 72°

Depth of field

10-150mm

Scan Mode

Auto sense, Command trigger, Continuous

Scan angle

Roll:±360°, Pitch:±60°, Yaw:±55°

Print Contrast Signal

≥20%

Ambient Light

Dark environment, indoor natural light

Symbologies

1D:UPC-A,UPC-E,EAN-8,EAN-13,Code 128, GS1-128, Code 39,Code 32, Code 93,Code 11,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of
5(Straight 2 of 5),Standard 2 of 5(IATA 2 of 5),Codabar(NW-7),MSI,GS1 Databar(Omnidirectional, Limited, Expanded),China Post,
Tepepen,GS1 Composite etc.
2D: QR Code, Micro QR Code, Data Matrix,PDF417, Micro PDF 417, MaxiCode, Aztec,HanXin Code, etc.

USB RS232 1D 2D Barcode Scanner 32 Bit CMOS Kiosk Barcode Scanner

Weight

≈27g

Dimension

50mm L* 40.2mm W * 17.3mm H

Communication way

USB(USB-KBW,USB-COM),TTL

Interface type

12PIN Pitch 0.5 FFC cable

Power Supply

DC 5V@240mA(work)

USB RS232 1D 2D Barcode Scanner 32 Bit CMOS Kiosk Barcode Scanner

Application

USB RS232 1D 2D Barcode Scanner 32 Bit CMOS Kiosk Barcode Scanner
