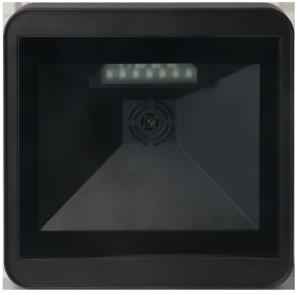

2D CMOS Barcode Scanner Wall-Mounted and Desktop Reader DP8550 for Tabletop and Wall-Mount Installations
Product Description
DP8550 is a stylish desktop two-dimensional image scanning platform, using advanced CMOS image recognition technology, intelligent image recognition system. Can easily read paper, goods, screens and other media on the one-dimensional code, two-dimensional code, strong reading performance. DP8550 scanning platform, with its compact and compact modern design and powerful imaging function, can be used in high-flow retail cashier environment and is suitable for large supermarkets, department stores, convenience stores, drugstores, tobacco hotels and grocery stores.
Features
☆ Large window design, large viewing angle, ultra-sensitive auto sense scanning.
☆ Read all mainstream 1D 2D barcodes in the market easily. (4mil)
☆ Support multiple languages and systems.
☆ Interface: USB, RS232.
☆ Widely used in supermarket, chain stores, mobile payment.
Application
▅ Chain retail ▅ Courier
▅ Supermarket
Parameter
| Scan Type | CMOS |
| Light Source | Red Light LED 625±10nm(aim), 5600K LEDs( Lighting) |
| CPU | 32-bit |
| Resolution | 1280*800 |
| Resolution | ≥5mil/0.127mm(PCS90%,Code 39) |
| Depth of field | 0mm-450mm |
| Scan Mode | Auto Sense |
| Scan angle | Roll±360°, Pitch±80°, Skew±70°(PCS90%, Code 39, 10mil/0.25mm) |
| Print Contrast Signal | ≥25% |
| Ambient Light | Dark environment, indoor natural light |
| Symbologies | 1D:Code 39,Codablock, Codabar, Code 128/EAN 128, Code 93,Code 11, Interleave 2 of 5, Matrix 2of 5, EAN.UCC Composite,Straight 2 of 5 Industrial, Straight 2 of 5,RSS,Plessey Code, MSI Code,Telepen,UPC-A,UPC-E0,EAN/JAN-13,BPO,Planet,TLC39,etc. 2D: PDF417,QR CODE,MICRO QR,DATAMATRIX, AZTEC CODE,HanXin,Maxicode,Micro PDF417,etc. |
| Weight | ≈265g (no Cable) |
| Dimension | 156.75*77.4*156.75mm |
| Interface Type | USB |
| Communication Mode | USB,RS232 |
| Power Supply | DC 5V@470mA(work) |
| Cable length | 1.5m |
| Operating temperature | -20℃ to 50℃ |
| Storage temperature | -40℃ to 70℃ |
| Humidity | 5% to 95%(non-condensing) |
| Drop Height | 1.2m |
| Temp. Test | 30 minutes for high Temp., 30 minutes for low Temp., |
| High Temp. | 60℃ |
| Low Temp. | -20℃ |
| Transport vibration Test | 10H@125RPM |
